I'm trying to implement authentication for my UI application I'm using which I succesffully configured to work with gluu auth server

Now I wanted to try with keycloak what happens is that flow is started with which looks ok

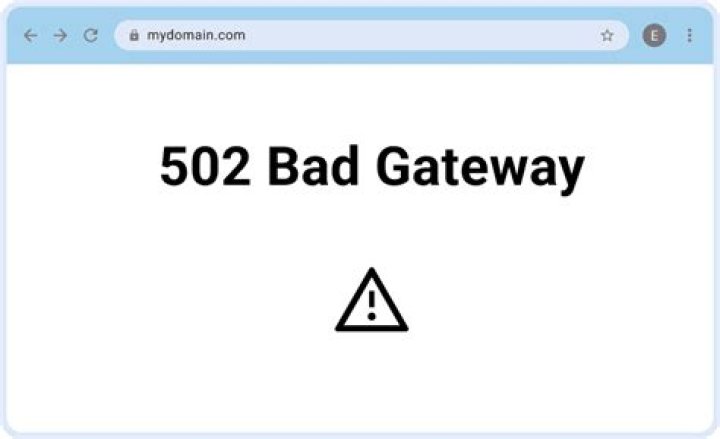

and keycloak login page is presented but after entering credentials on submit I get error 502 for the following request ( if incorrect credentials are entered proper error messages is shown )

this is the exception that I see in the log

08:03:26,164 DEBUG [io.undertow.request.io] (default task-1) UT005013: An IOException occurred: java.io.IOException: Connection reset by peer at sun.nio.ch.FileDispatcherImpl.read0(Native Method) at sun.nio.ch.SocketDispatcher.read(SocketDispatcher.java:39) at sun.nio.ch.IOUtil.readIntoNativeBuffer(IOUtil.java:223) at sun.nio.ch.IOUtil.read(IOUtil.java:197) at sun.nio.ch.SocketChannelImpl.read(SocketChannelImpl.java:380) at org.xnio.nio.NioSocketConduit.read(NioSocketConduit.java:289) at org.xnio.conduits.ConduitStreamSourceChannel.read(ConduitStreamSourceChannel.java:127) at io.undertow.util.ConnectionUtils.doDrain(ConnectionUtils.java:96) at io.undertow.util.ConnectionUtils.cleanClose(ConnectionUtils.java:74) at io.undertow.server.protocol.http.HttpReadListener.exchangeComplete(HttpReadListener.java:368) at io.undertow.server.protocol.http.HttpServerConnection.exchangeComplete(HttpServerConnection.java:232) at io.undertow.server.HttpServerExchange.invokeExchangeCompleteListeners(HttpServerExchange.java:1279) at io.undertow.server.HttpServerExchange.terminateResponse(HttpServerExchange.java:1563) at io.undertow.server.Connectors.terminateResponse(Connectors.java:147) at io.undertow.server.protocol.http.ServerFixedLengthStreamSinkConduit.channelFinished(ServerFixedLengthStreamSinkConduit.java:58) at io.undertow.conduits.AbstractFixedLengthStreamSinkConduit.exitFlush(AbstractFixedLengthStreamSinkConduit.java:316) at io.undertow.conduits.AbstractFixedLengthStreamSinkConduit.flush(AbstractFixedLengthStreamSinkConduit.java:234) at org.xnio.conduits.ConduitStreamSinkChannel.flush(ConduitStreamSinkChannel.java:162) at io.undertow.channels.DetachableStreamSinkChannel.flush(DetachableStreamSinkChannel.java:119) at org.xnio.channels.Channels.flushBlocking(Channels.java:63) at io.undertow.servlet.spec.ServletOutputStreamImpl.close(ServletOutputStreamImpl.java:618) at io.undertow.servlet.spec.HttpServletResponseImpl.closeStreamAndWriter(HttpServletResponseImpl.java:486) at io.undertow.servlet.spec.HttpServletResponseImpl.responseDone(HttpServletResponseImpl.java:575) at io.undertow.servlet.handlers.ServletInitialHandler.handleFirstRequest(ServletInitialHandler.java:351) at io.undertow.servlet.handlers.ServletInitialHandler.access$100(ServletInitialHandler.java:81) at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:138) at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:135) at io.undertow.servlet.core.ServletRequestContextThreadSetupAction$1.call(ServletRequestContextThreadSetupAction.java:48) at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:138) at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:135) at io.undertow.servlet.core.ServletRequestContextThreadSetupAction$1.call(ServletRequestContextThreadSetupAction.java:48) at io.undertow.servlet.core.ContextClassLoaderSetupAction$1.call(ContextClassLoaderSetupAction.java:43) at org.wildfly.extension.undertow.security.SecurityContextThreadSetupAction.lambda$create$0(SecurityContextThreadSetupAction.java:105) at org.wildfly.extension.undertow.deployment.UndertowDeploymentInfoService$UndertowThreadSetupAction.lambda$create$0(UndertowDeploymentInfoService.java:1502) at org.wildfly.extension.undertow.deployment.UndertowDeploymentInfoService$UndertowThreadSetupAction.lambda$create$0(UndertowDeploymentInfoService.java:1502) at org.wildfly.extension.undertow.deployment.UndertowDeploymentInfoService$UndertowThreadSetupAction.lambda$create$0(UndertowDeploymentInfoService.java:1502) at org.wildfly.extension.undertow.deployment.UndertowDeploymentInfoService$UndertowThreadSetupAction.lambda$create$0(UndertowDeploymentInfoService.java:1502) at io.undertow.servlet.handlers.ServletInitialHandler.dispatchRequest(ServletInitialHandler.java:272) at io.undertow.servlet.handlers.ServletInitialHandler.access$000(ServletInitialHandler.java:81) at io.undertow.servlet.handlers.ServletInitialHandler$1.handleRequest(ServletInitialHandler.java:104) at io.undertow.server.Connectors.executeRootHandler(Connectors.java:364) at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:830) at org.jboss.threads.ContextClassLoaderSavingRunnable.run(ContextClassLoaderSavingRunnable.java:35) at org.jboss.threads.EnhancedQueueExecutor.safeRun(EnhancedQueueExecutor.java:1982) at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.doRunTask(EnhancedQueueExecutor.java:1486) at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.run(EnhancedQueueExecutor.java:1377) at java.lang.Thread.run(Thread.java:748) 08:03:27,805 DEBUG [org.keycloak.transaction.JtaTransactionWrapper] (Timer-2) new JtaTransactionWrapper 08:03:27,806 DEBUG [org.keycloak.transaction.JtaTransactionWrapper] (Timer-2) was existing? false 08:03:27,811 DEBUG [org.keycloak.models.sessions.infinispan.changes.sessions.PersisterLastSessionRefreshStore] (Timer-2) Updating 0 userSessions with lastSessionRefresh: 1557813747 08:03:27,812 DEBUG [org.hibernate.resource.transaction.backend.jta.internal.JtaTransactionCoordinatorImpl] (Timer-2) Hibernate RegisteredSynchronization successfully registered with JTA pla tform

If i try to access /auth/realms/master/account there is no problem but that uses authorization code flow

keycloak is running behind nginx

 listen 80; listen [::]:80; server_name auth.solidsense.tk; location /{ proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass

I expect that after the clicking the submit button and after keycloak validates username and password to get redirected to my applications redirect_uri

2

7 Answers

I got this same 502 error.

Nginx error log was reporting "*1 upstream sent too big header while reading response header from upstream,". Increasing the buffer size fixed the issue.

Add these directives to the http block in nginx.conf

proxy_buffer_size 128k; proxy_buffers 4 256k; proxy_busy_buffers_size 256k;
1

For those of you that are dealing with Nginx Kubernetes ingress:

"": "128k"

More info here:

The problem might be in Nginx configuration. Try setting proxy_buffers to a higher number. e.g.:

listen 80; listen [::]:80; server_name auth.solidsense.tk; location /{ proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_buffers 4 16k; proxy_pass ...
0

Root cause is low nginx proxy buffer size. You need to increase it, for example 128k. If you are using kubernetes ingress like me, you can use the following settings.

 "128k"

ingress.yaml

apiVersion: kind: Ingress metadata: name: test-keycloak annotations: "128k" spec: ingressClassName: nginx tls: - hosts: - keycloak.mesutpiskin.com secretName: wildcard-fimple rules: - host: keycloak.mesutpiskin.com http: paths: - path: / pathType: Prefix backend: service: name: test-keycloak port: number: 8080

for anyone deploying with the official nginx-ingress chart from , the annotation is "128k"

"HTTPS" is what did it for me

For those who are using Ingress Controller on Kubernetes: Update Config Map that corresponds to the Ingress Controller, in my case ingress-nginx-controller, as shown below

apiVersion: v1 kind: ConfigMap metadata: ....... ..... data: ......... proxy-buffer-size: 128k proxy_buffers: 4 256k proxy_busy_buffers_size: 256k
