using savefig to increase dots per inch (DPI) in matplotlib.pyplot

This answer, suggests using plt.savefig in order to increase the DPI. I am a relative newbie, and not sure how to use .savefig.

savefig's call signature requires fname to reference the file (or object?) which needs more DPI:

In the following code, what should I use for fname? Should I create an object and then reference that?

#previous code generates two dataframes now converted to two lists... Max_Vals = DFMAX1.tolist() Min_Vals = DFMIN1.tolist() fig = plt.figure() plt.plot(Max_Vals, 'g-') plt.plot(Min_Vals, 'b-') fig.set_size_inches(30.,18.) plt.show()

When I run savefig without fname:

plt.savefig(dpi=300)

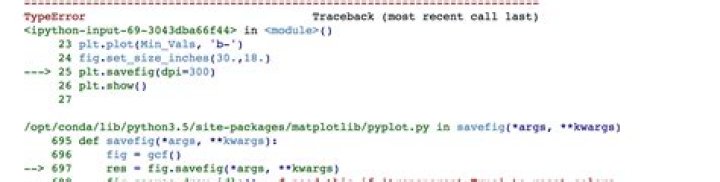

I get an error:

Grateful for any help.

1 Answer

The point of plt.savefig() is it allows you to export the graph to a file. If you're just using plt.show() you're only showing the image, at which point to copy it elsewhere you have to use print-screen or similar.

Try running:

#previous code generates two dataframes now converted to two lists... Max_Vals = DFMAX1.tolist() Min_Vals = DFMIN1.tolist() fig = plt.figure() plt.plot(Max_Vals, 'g-') plt.plot(Min_Vals, 'b-') fig.set_size_inches(30.,18.) plt.savefig('100dpi.png', dpi=100) plt.savefig('200dpi.png', dpi=200)

At this point, two image files will be saved in your working folder (likely the same folder as your script) - one with 100dpi, the second with 200dpi.
