Improve subplot size/spacing with many subplots in matplotlib

Very similar to this question but with the difference that my figure can be as large as it needs to be.

I need to generate a whole bunch of vertically-stacked plots in matplotlib. The result will be saved using figsave and viewed on a webpage, so I don't care how tall the final image is as long as the subplots are spaced so they don't overlap.

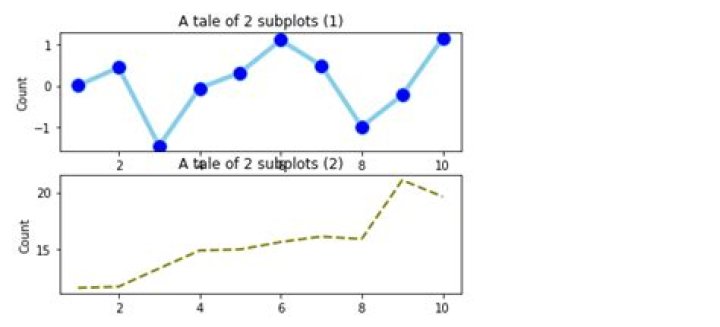

No matter how big I allow the figure to be, the subplots always seem to overlap.

My code currently looks like

import matplotlib.pyplot as plt import my_other_module titles, x_lists, y_lists = my_other_module.get_data() fig = plt.figure(figsize=(10,60)) for i, y_list in enumerate(y_lists): plt.subplot(len(titles), 1, i) plt.xlabel("Some X label") plt.ylabel("Some Y label") plt.title(titles[i]) plt.plot(x_lists[i],y_list) fig.savefig('out.png', dpi=100)

7 Answers

Try using plt.tight_layout

As a quick example:

import matplotlib.pyplot as plt fig, axes = plt.subplots(nrows=4, ncols=4) fig.tight_layout() # Or equivalently, "plt.tight_layout()" plt.show()

Without Tight Layout

With Tight Layout

You can use plt.subplots_adjust to change the spacing between the subplots (source)

call signature:

subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None)

The parameter meanings (and suggested defaults) are:

left = 0.125 # the left side of the subplots of the figure right = 0.9 # the right side of the subplots of the figure bottom = 0.1 # the bottom of the subplots of the figure top = 0.9 # the top of the subplots of the figure wspace = 0.2 # the amount of width reserved for blank space between subplots hspace = 0.2 # the amount of height reserved for white space between subplots

The actual defaults are controlled by the rc file

I found that subplots_adjust(hspace = 0.001) is what ended up working for me. When I use space = None, there is still white space between each plot. Setting it to something very close to zero however seems to force them to line up. What I've uploaded here isn't the most elegant piece of code, but you can see how the hspace works.

import numpy as np import matplotlib.pyplot as plt import matplotlib.ticker as tic fig = plt.figure() x = np.arange(100) y = 3.*np.sin(x*2.*) for i in range(5): temp = 510 + i ax = plt.subplot(temp) plt.plot(x,y) plt.subplots_adjust(hspace = .001) temp = tic.MaxNLocator(3) ax.yaxis.set_major_locator(temp) ax.set_xticklabels(()) ax.title.set_visible(False) plt.show()

Similar to tight_layout matplotlib now (as of version 2.2) provides constrained_layout. In contrast to tight_layout, which may be called any time in the code for a single optimized layout, constrained_layout is a property, which may be active and will optimze the layout before every drawing step.

Hence it needs to be activated before or during subplot creation, such as figure(constrained_layout=True) or subplots(constrained_layout=True).

Example:

import matplotlib.pyplot as plt fig, axes = plt.subplots(4,4, constrained_layout=True) plt.show()

constrained_layout may as well be set via rcParams

plt.rcParams['figure.constrained_layout.use'] = True

See the what's new entry and the Constrained Layout Guide

import matplotlib.pyplot as plt fig = plt.figure(figsize=(10,60)) plt.subplots_adjust( ... )

The plt.subplots_adjust method:

def subplots_adjust(*args, **kwargs): """ call signature:: subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None) Tune the subplot layout via the :class:`matplotlib.figure.SubplotParams` mechanism. The parameter meanings (and suggested defaults) are:: left = 0.125 # the left side of the subplots of the figure right = 0.9 # the right side of the subplots of the figure bottom = 0.1 # the bottom of the subplots of the figure top = 0.9 # the top of the subplots of the figure wspace = 0.2 # the amount of width reserved for blank space between subplots hspace = 0.2 # the amount of height reserved for white space between subplots The actual defaults are controlled by the rc file """ fig = gcf() fig.subplots_adjust(*args, **kwargs) draw_if_interactive()

or

fig = plt.figure(figsize=(10,60)) fig.subplots_adjust( ... )

The size of the picture matters.

"I've tried messing with hspace, but increasing it only seems to make all of the graphs smaller without resolving the overlap problem."

Thus to make more white space and keep the sub plot size the total image needs to be bigger.

You could try the subplot_tool()

plt.subplot_tool()

• Resolving this issue when plotting a dataframe with pandas.DataFrame.plot, which uses matplotlib as the default backend.
  • The following works for whichever kind= is specified (e.g. 'bar', 'scatter', 'hist', etc.)
• Tested in python 3.8.12, pandas 1.3.4, matplotlib 3.4.3

Imports and sample data

import pandas as pd import numpy as np import matplotlib.pyplot as plt # sinusoidal sample data sample_length = range(1, 15+1) rads = np.arange(0, 2*np.pi, 0.01) data = np.array([np.sin(t*rads) for t in sample_length]) df = pd.DataFrame(data.T, index=pd.Series(rads.tolist(), name='radians'), columns=[f'freq: {i}x' for i in sample_length]) # display(df.head(3)) freq: 1x freq: 2x freq: 3x freq: 4x freq: 5x freq: 6x freq: 7x freq: 8x freq: 9x freq: 10x freq: 11x freq: 12x freq: 13x freq: 14x freq: 15x radians 0.00 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.01 0.010000 0.019999 0.029996 0.039989 0.049979 0.059964 0.069943 0.079915 0.089879 0.099833 0.109778 0.119712 0.129634 0.139543 0.149438 0.02 0.019999 0.039989 0.059964 0.079915 0.099833 0.119712 0.139543 0.159318 0.179030 0.198669 0.218230 0.237703 0.257081 0.276356 0.295520 # default plot with subplots; each column is a subplot axes = df.plot(subplots=True)

Adjust the Spacing

• Adjust the default parameters in pandas.DataFrame.plot
  1. Change figsize: a width of 5 and a height of 4 for each subplot is a good place to start
  2. Change layout: (rows, columns) for the layout of subplots.
  3. sharey=True and sharex=True so space isn't taken for redundant labels on each subplot.
• The .plot method returns a numpy array of matplotlib.axes.Axes, which should be flattened to easily work with.
• Use .get_figure() to extract the DataFrame.plot figure object from one of the Axes.
• Use fig.tight_layout() if desired.

axes = df.plot(subplots=True, layout=(3, 5), figsize=(25, 16), sharex=True, sharey=True) # flatten the axes array to easily access any subplot axes = axes.flat # extract the figure object fig = axes[0].get_figure() # use tight_layout fig.tight_layout()
