i am working on react flow using typescript, for react flow i am using ractflow and react-flow-renderer packages. In the start i have one node and a button, what i want is: when i click on the button => create a new node. i was able to create a new node when i click on the button, but my problem is: i can not drag my nodes or join them together: this is my code:

/* -------------------------------------------------------------------------- */ /* Libraries */ /* -------------------------------------------------------------------------- */ import React, { useCallback, useState, useRef } from "react"; import ReactFlow from "react-flow-renderer"; /* -------------------------------------------------------------------------- */ /* Implementation */ /* -------------------------------------------------------------------------- */ const initialElements = [ { id: "1", type: "input", data: { label: "Input Node" }, position: { x: 100, y: 0 }, }, ]; /* -------------------------------------------------------------------------- */ /* Function */ /* -------------------------------------------------------------------------- */ export default function Flow() { const [els, setEls] = useState(initialElements); const yPos = useRef(0); const addNode = useCallback(() => { yPos.current += 80; setEls((els: any) => { console.log(els); return [ ...els, { id: Math.random(), position: { x: 100, y: yPos.current }, data: { label: "new node" }, style: { backgroundColor: "#00fff0", visibility: "visible", }, }, ]; }); }, []); const addEdge = useCallback(({ source, target }: any) => { setEls((els: any) => { console.log(source, target); return [ ...els, { id: Math.random(), source, target, }, ]; }); }, []); return ( <div> {/* React Flow */} <div style={{ height: 300 }}> <ReactFlow nodes={els} nodesDraggable={true} nodesConnectable={true} /> </div> {/* if this button will be clicked a new node should be created */} <button onClick={addNode} className="p-2 m-2 rounded-md bg-[#00fff0]"> Add </button> </div> ); }

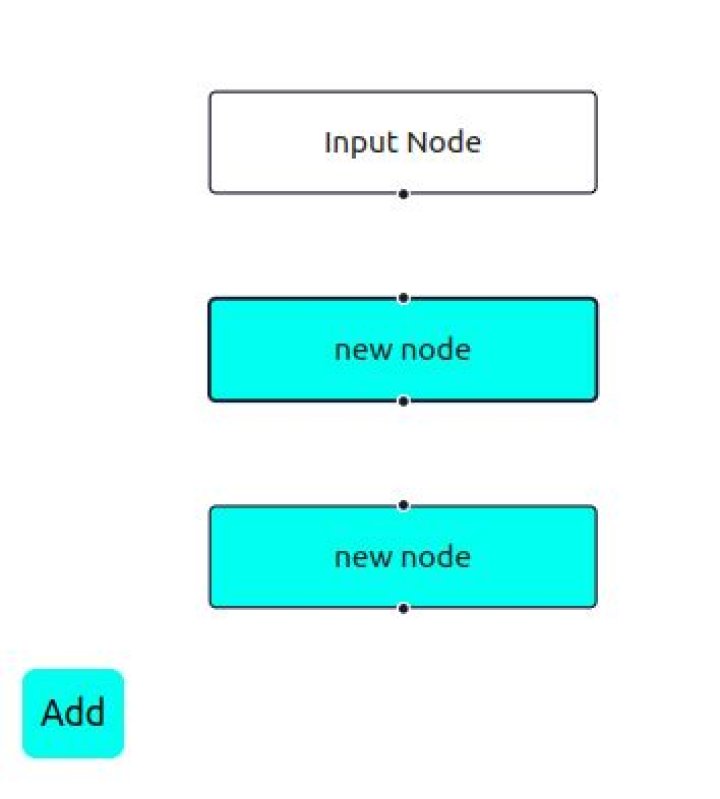

and this is what i got so far:

enter image description here

anyone can help how i can make the nodes draggable and able to join them together? Thanx in advance

1 Answer

Your code does not apply drag events to your state (els). Refer to

Basically, you're missing change handler:

import ReactFlow, { applyNodeChanges } from 'reactflow'; ... const onNodesChange = useCallback( (changes) => setEls((els) => applyNodeChanges(changes, els)), [] ); <ReactFlow nodes={els} onNodesChange={onNodesChange} ... />
